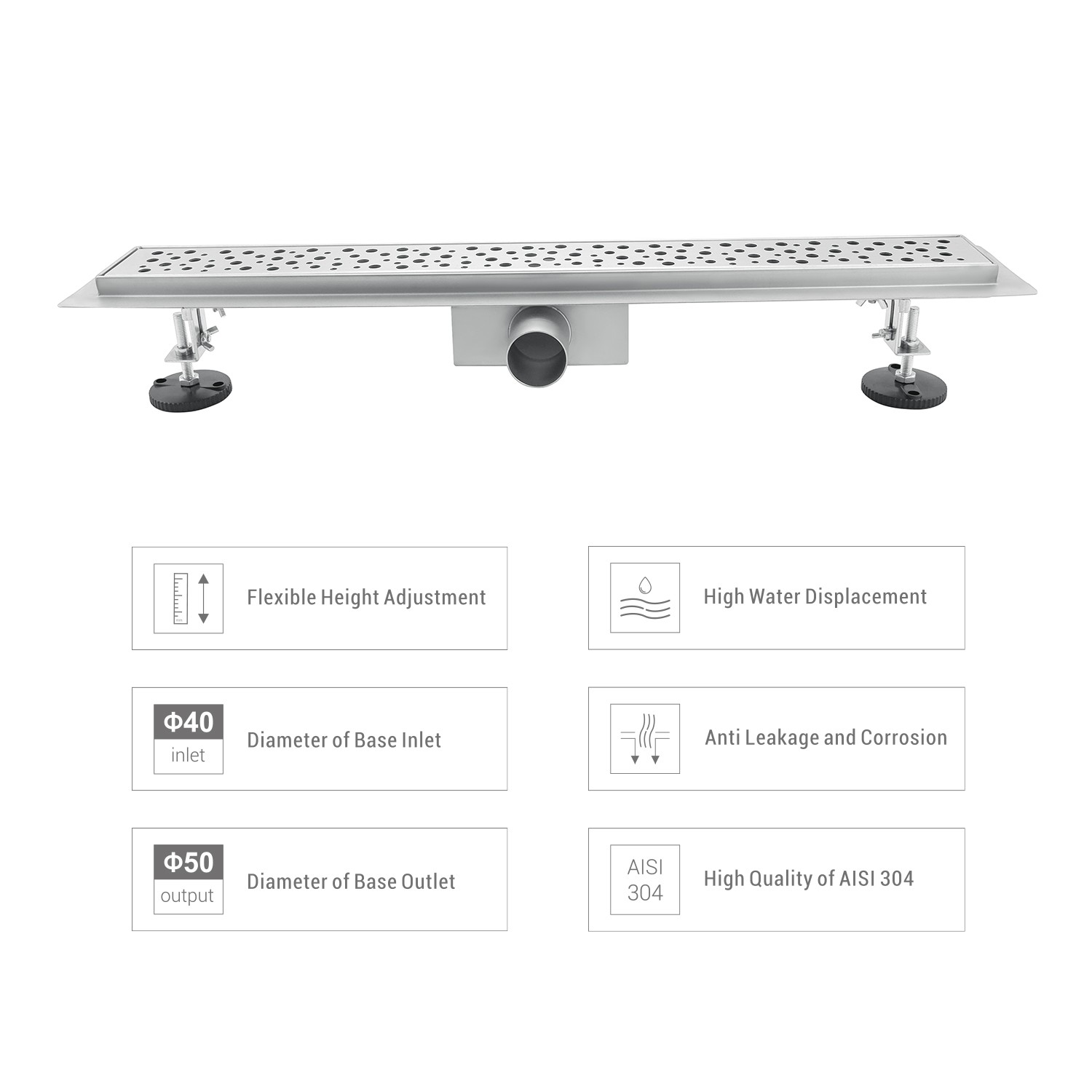

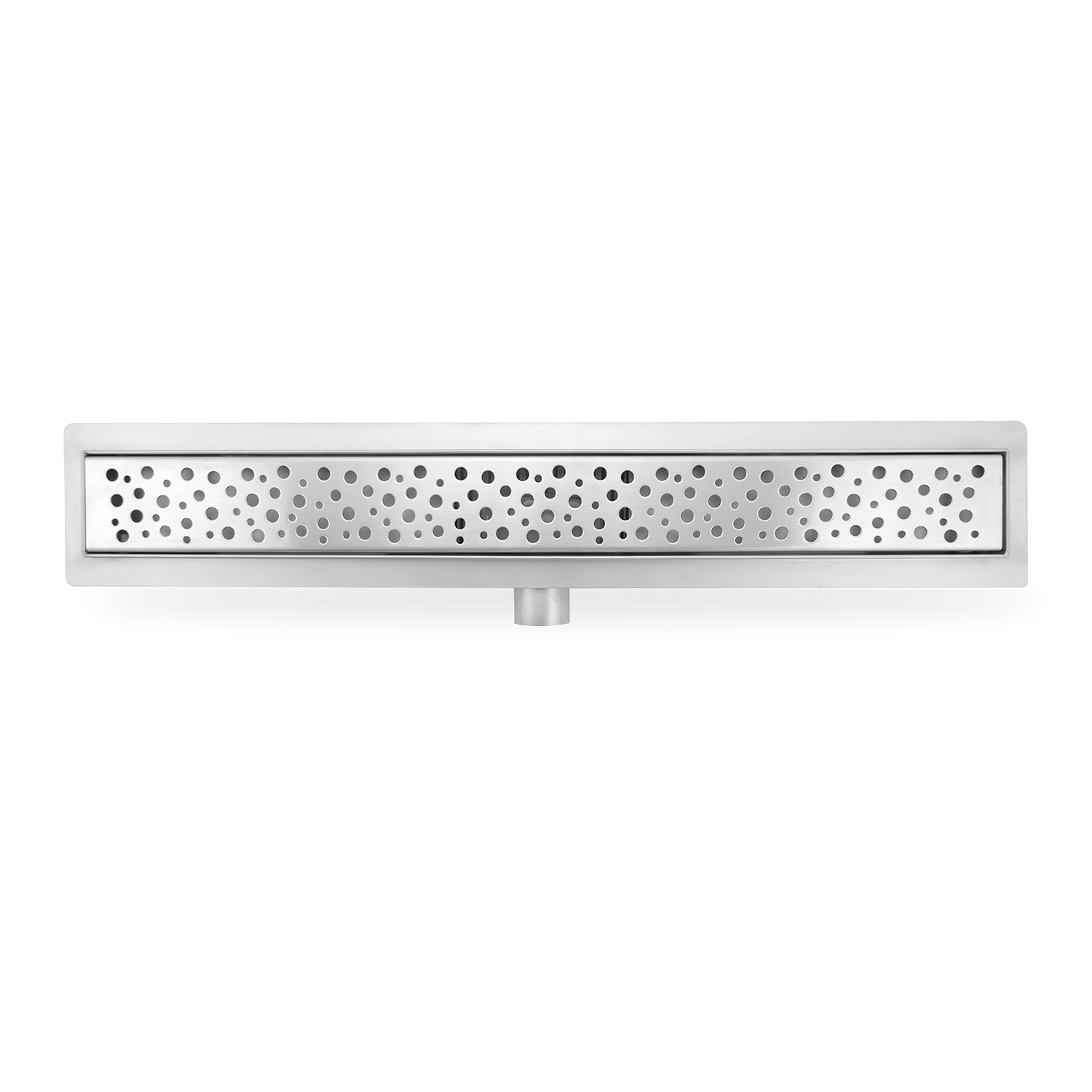

AL06-Shower Drain

1. Different from the traditional shower drain, the larger water catch basin underlines a powerful drainage capacity.

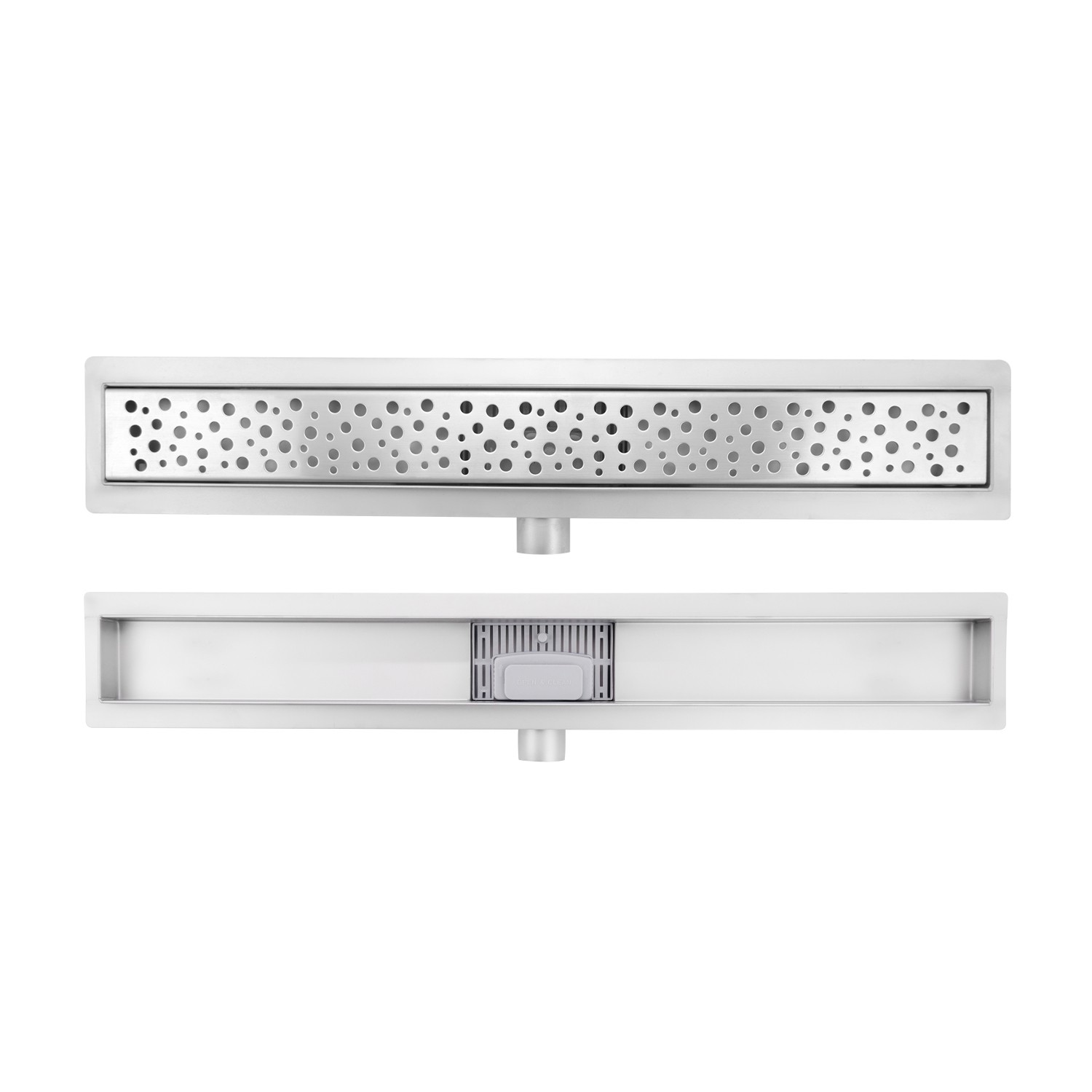

2. 2-in-1 panel design, grate, or ceramic tiles of the same material as the bathroom floor  is available.

3. High-quality SUS304/SUS316 are sufficient to withstand humid and harsh environments without rust and corrosion.

4. Shower drain cover length can be customized, ranging from 300 to 3000mm.

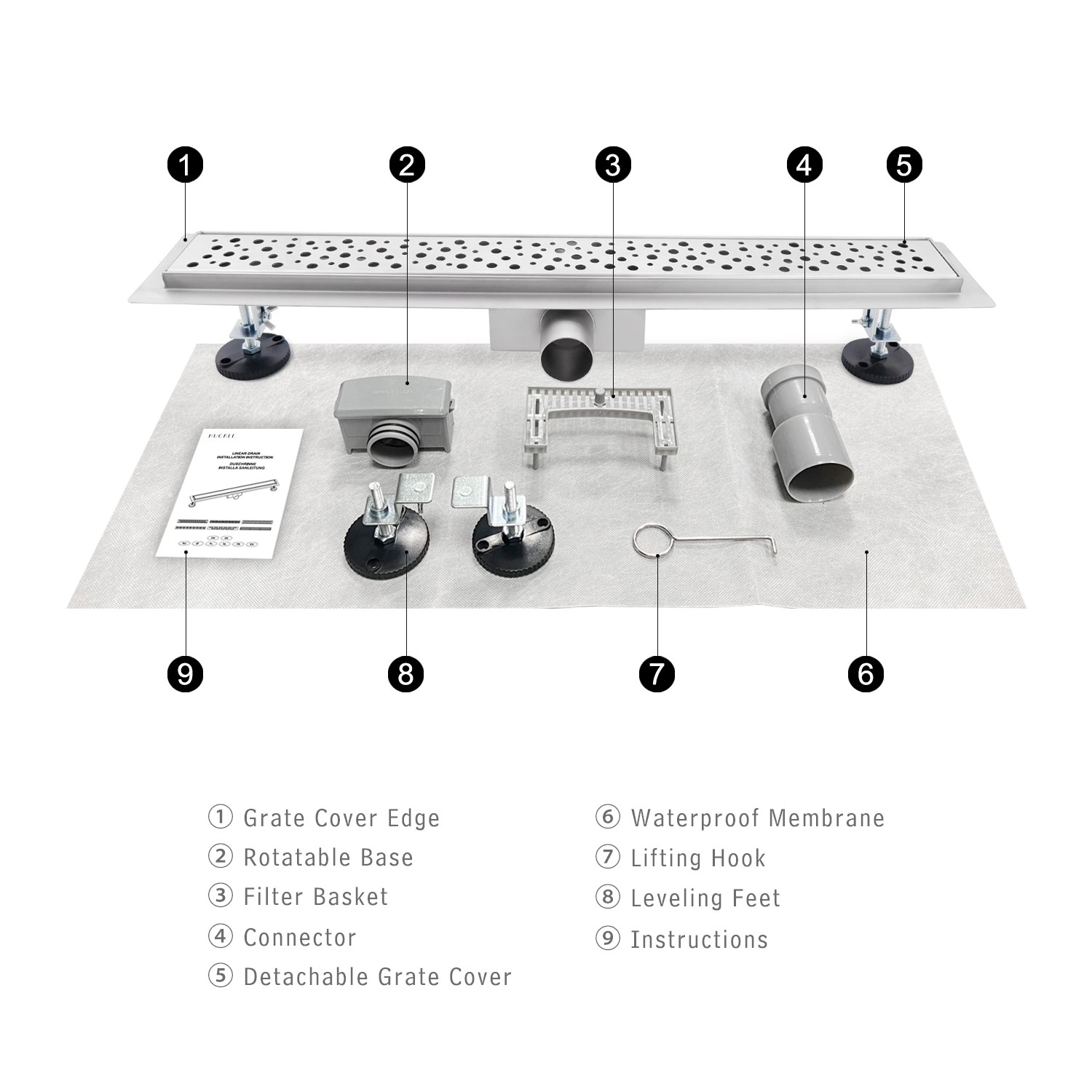

5. The flange and polyester polymer waterproof membrane effectively prevent water leakage and seepage.

6. The diameter of the drainage pipe is DN40, reaching 36L/min of drainage volume and meeting the EN1253 standard.

7. The water channel leads the water flow into the shower drain.

8. Odor Prevention: Deodorizing siphon prevents odor from entering the room.

9. Insect Prevention: The water seal ensures that bacteria and insects cannot enter the room.

10. Clog Prevention: Hair strainer prevents clogging of the drain pipe.

11. Overflow Prevention: Prevent groundwater from spilling back into the room and causing pollution.
